Product Overview

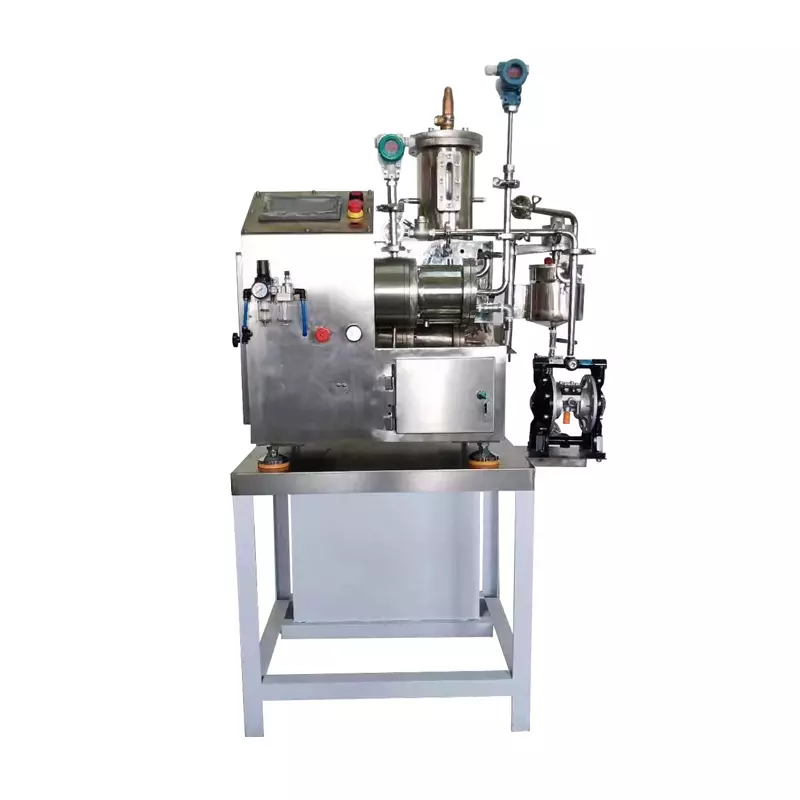

The Mushen Mechanical Chemical industry-specific nano-grinding machine represents the peak of ultrafine grinding technology in the chemical field. This equipment is specially designed for processing high-viscosity, high-difficulty and corrosive chemical raw materials. It can efficiently grind materials to a particle size distribution at the nanometer level and ensure excellent particle uniformity and stability. Whether it is used in pigments, dyes, pesticides, battery slurries or high-end ceramic inks, it is your ideal choice to achieve a breakthrough in product performance.

Core advantage

Outstanding grinding accuracy: With an advanced dynamic grinding structure design and a precise separation system, it ensures an extremely narrow particle size distribution in the output, easily reaching the nanometer level (D50 < 100nm), thereby obtaining a brighter and more stable final product.

Extraordinary stability and durability: Components in contact with materials can be made of high-quality stainless steel or various engineering ceramics (such as zirconia, silicon carbide), etc., which have excellent wear resistance and corrosion resistance, ensuring long-term stable operation in harsh chemical environments and avoiding metal ion contamination.

Extremely high grinding efficiency: The optimized grinding chamber geometry and high energy density design achieve more intense shear force and collision frequency, significantly reducing grinding time, enhancing production efficiency, and effectively lowering energy consumption per unit product.

Intelligent temperature control system: Equipped with efficient jacket cooling and precise temperature sensors, it can precisely control the temperature during the grinding process, effectively protecting heat-sensitive chemicals and preventing material denaturation or quality decline caused by high temperatures.

Technical highlights and design philosophy

Modular and rapid maintenance design

The core components adopt a modular design, allowing for the quick disassembly and replacement of parts such as grinding discs and separators without the need for professional tools.

This design minimizes unplanned downtime, enabling cleaning and maintenance work to be completed within tens of minutes and significantly reducing your life-cycle maintenance costs.

Outstanding sealing technology

We offer a variety of mechanical seal system options (including double-end face cartridge seals), fully adapting to various working conditions from normal pressure to high pressure, completely eliminating leakage risks, and ensuring production safety and workshop environment.

High flexibility and customizability

From laboratory types to large-scale continuous production types, we offer a variety of specifications and models.

We can customize the best solution based on your specific process requirements (such as material properties, production capacity targets, and budget), including flexible choices of materials, motor power, and the level of automation control.

Summary of Technical Specifications

Application fields: pigments, coatings, pesticide formulations, lithium battery slurries, printing inks, nanomaterials, etc.

Final fineness: Up to D50 < 100nm.

Grinding medium: Compatible with zirconia, glass beads, etc. ranging from 0.1mm to 2.0mm.

Control system: Optional integrated PLC and touch screen are available to achieve parameter setting, data recording and remote monitoring.

Why choose Musehn?

We not only offer a machine, but also a commitment. Mushen Machinery strictly adheres to the ISO9001 quality system. Each nano grinder embodies our technical expertise accumulated over 25 years in the field of chemical machinery. From in-depth process consultation, comprehensive installation training to a responsive global after-sales service network, we ensure that you receive full support throughout the entire equipment life cycle.

Product Parameters
