Product Overview

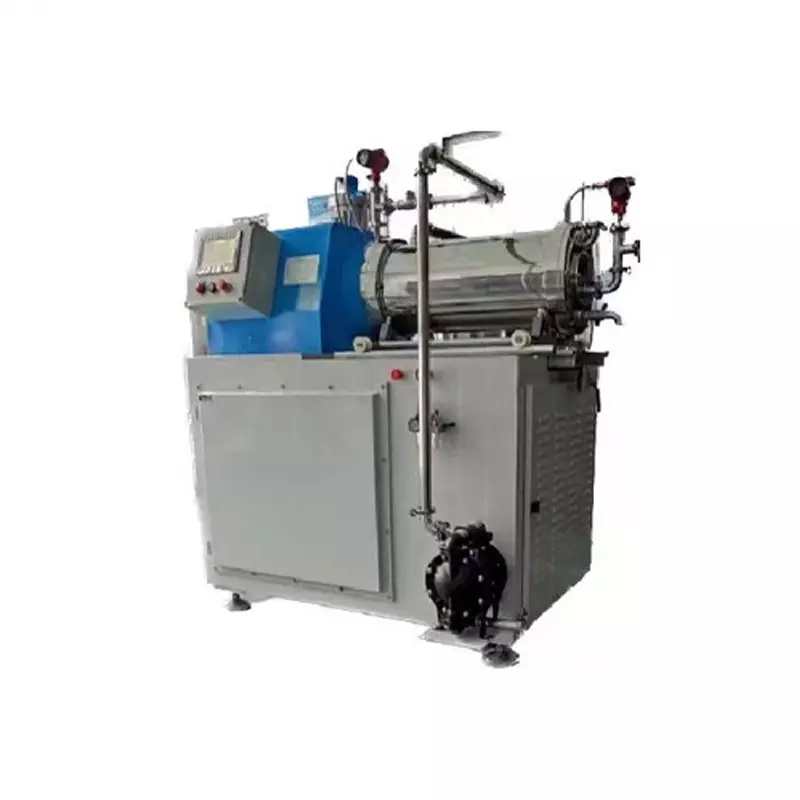

Lechi Machinery's Horizontal Bead Mill represents the top level of modern wet grinding and dispersion technology. This series of equipment is specially designed for the most demanding ultrafine grinding applications at the nanometer and sub-micron levels, and is widely used in high-end coatings, inks, pesticides, new energy battery slurries, ceramic glazes and electronic chemicals, among other fields. By integrating mature Swiss technical concepts with German precision manufacturing standards, we ensure the outstanding performance of the equipment in terms of stability, efficiency and ease of maintenance.
Core advantages and innovative design
Revolutionary modular design
Rapid maintenance and minimized downtime losses: All core components, including the grinding chamber, stirring shaft and mechanical seal, are designed in a modular way. Without professional tools, operators can complete disassembly, cleaning and component replacement in an extremely short time, reducing the maintenance work of traditional sand mills from several hours to minutes, significantly improving the comprehensive utilization rate of the equipment.
Outstanding grinding efficiency and effect
High-efficiency energy input: The optimized geometry of the stirrer and the high linear velocity design ensure that the grinding medium acquires maximum kinetic energy, achieving high-speed shearing and collision of materials, thereby obtaining a narrower particle size distribution and better grinding efficiency.
Precise temperature control: The large-sized cooling jacket and precise diversion design ensure that heat is efficiently removed during the grinding process, protecting heat-sensitive materials and guaranteeing the stability of product quality.
Unparalleled reliability
German quality core components: Utilizing top-grade German mechanical seals and special alloy materials, it ensures outstanding sealing performance and excellent wear resistance of the equipment during long-term high-load operation, eliminating the risk of leakage.
Ultimate interchangeability of parts: We strictly adhere to ISO standards, pursue millimeter-level dimensional stability, and ensure that all spare parts have perfect interchangeability, simplifying your spare parts inventory management.
Highlights of technical specifications
Grinding fineness: It can reach the nanometer level (<100nm) to sub-micron level.
Grinding media: Compatible with various grinding media such as zirconia, glass, and steel balls, with particle size ranges from 0.1mm to 3.0mm.
Material selection
The parts in contact with materials can be provided with high-quality stainless steel, wear-resistant steel, polyurethane or ceramic linings to cope with different corrosive and abrasive materials.
Cooling system: All-round high-efficiency cooling jacket (cylinder, end cover), and a powerful cooling system can be optionally equipped.
Power system: High-performance variable frequency motors are adopted to achieve stepless speed regulation, meeting the energy demands of different process stages.
Control system: An optional PLC touch screen control system is available to achieve parameter setting, data recording and process automation control.
Why choose Lechi Horizontal Bead Mill?
Reduce total cost of ownership: The modular design significantly reduces maintenance time and labor costs, and its outstanding durability lowers the frequency of spare parts replacement.
Ensuring production continuity: The extremely high reliability and ease of maintenance of the equipment provide a solid guarantee for you to achieve 7x24-hour continuous production.
Comprehensive technical support: We not only offer hardware but also provide full life-cycle services ranging from process validation, equipment selection to installation and commissioning, as well as operation training. We have a 24-hour service hotline and a professional after-sales team to ensure that your concerns can be responded to promptly.
Quality Certification: The production system strictly adheres to the ISO9001 quality management standard to ensure that every piece of equipment has traceable outstanding quality.
