High-Efficiency Dispersion: The Heart of Nano-Grinding | Musehn Machinery

At Musehn Machinery, we believe the soul of a high-performance sand mill lies within its rotor. To achieve sub-micron or even true nano-scale particles, the physical interaction between the rotor and the grinding media must be perfectly calibrated. Today, we’re breaking down two of our most critical rotor designs that power our industrial bead mills.

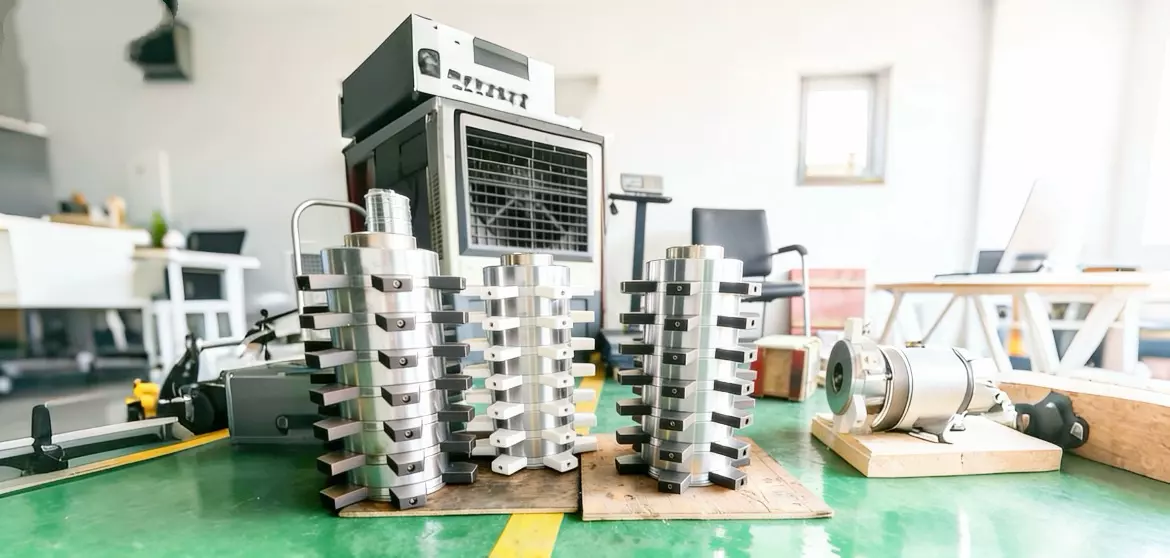

1. Pin-Type Grinding Rotor (Nano-Scale Precision)

The pin-type (or rod-pin) rotor is the heavy hitter for high-energy density applications. By utilizing a series of hardened pins arranged strategically along the shaft, this design creates intense shear forces and frequent collisions between the grinding beads.

Key Advantage: It excels at high-flow circulation. The "pin" geometry forces the media into a chaotic, high-velocity state, making it ideal for utilizing 0.1mm zirconia beads.

Best For: Achieving particle sizes under 100nm in industries like electronic ceramics 、 new material battery and nano new materials slurries.

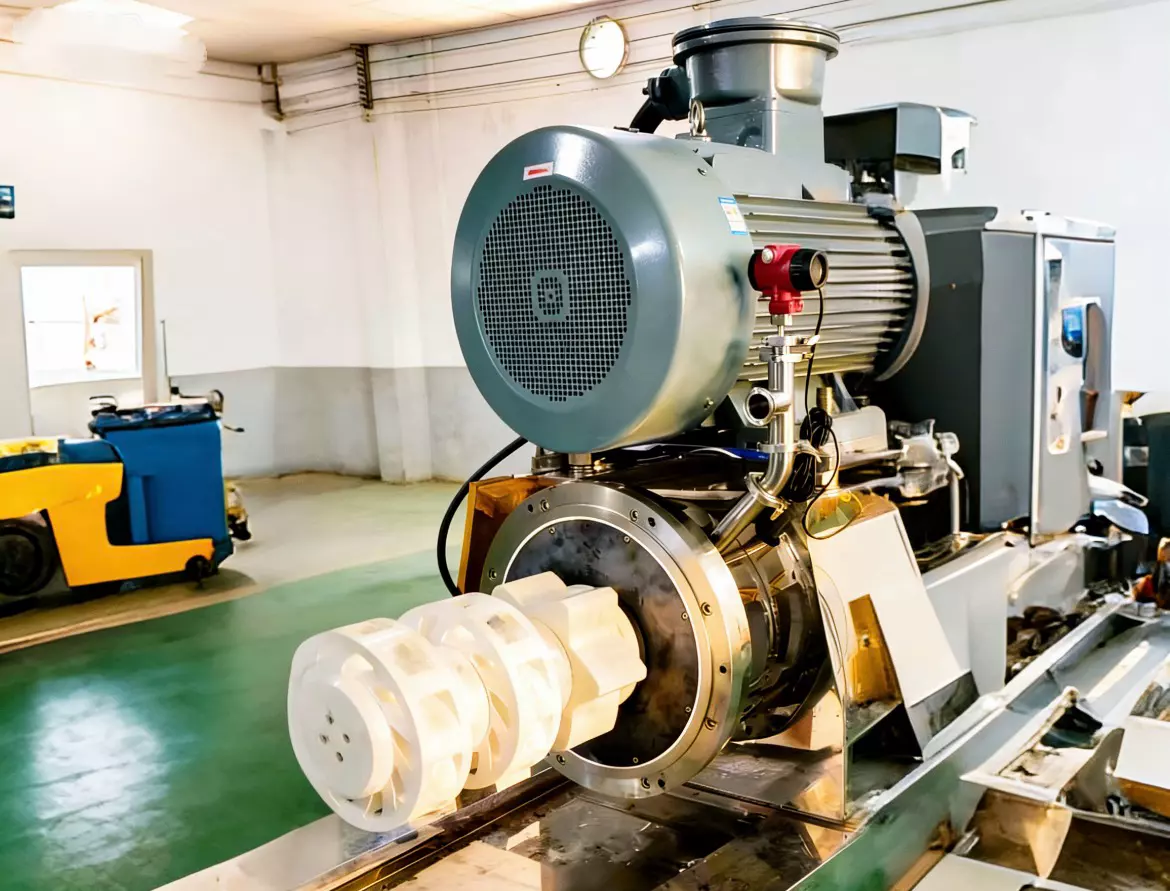

2. Turbine-Style Rotor (Gentle, High-Volume Flow)

For processes requiring massive throughput without excessive heat buildup, our turbine rotor is the engineered solution. Unlike the aggressive impact of pins, the turbine blades act as a centrifugal pump for the grinding media.

Key Advantage: Exceptional thermal management and anti-blocking performance. The turbine design ensures a smooth, consistent flow pattern, significantly reducing the risk of "bead compression" near the discharge screen.

Best For: Heat-sensitive materials and high-viscosity dispersions where maintaining a stable temperature is as important as the grind itself.
